There is potential for damage, death, or injury should flight be attempted with Bird Spikes still attached to the aircraft. It is impossible to predict all the ways damage, death, or injury could occur using Bird Spikes or if the engine is started or flight is attempted without removal of Bird Spikes. There is a potential for injury when handling or mounting Bird Spikes. Use at your own risk.
This information for educational purposes only.
REMOVE BEFORE FLIGHT Handle with Care

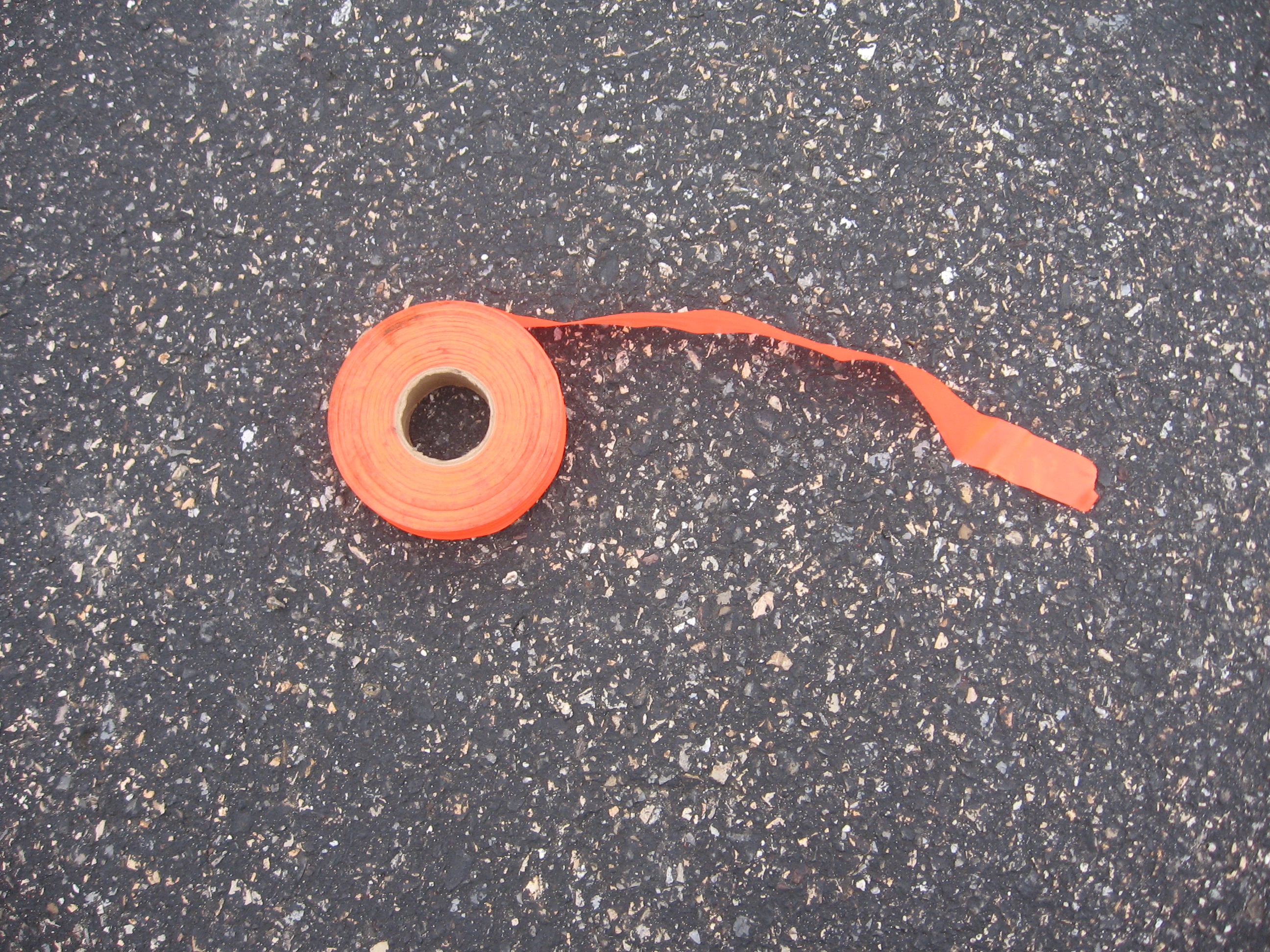

Surveyor Tape... Home Depot

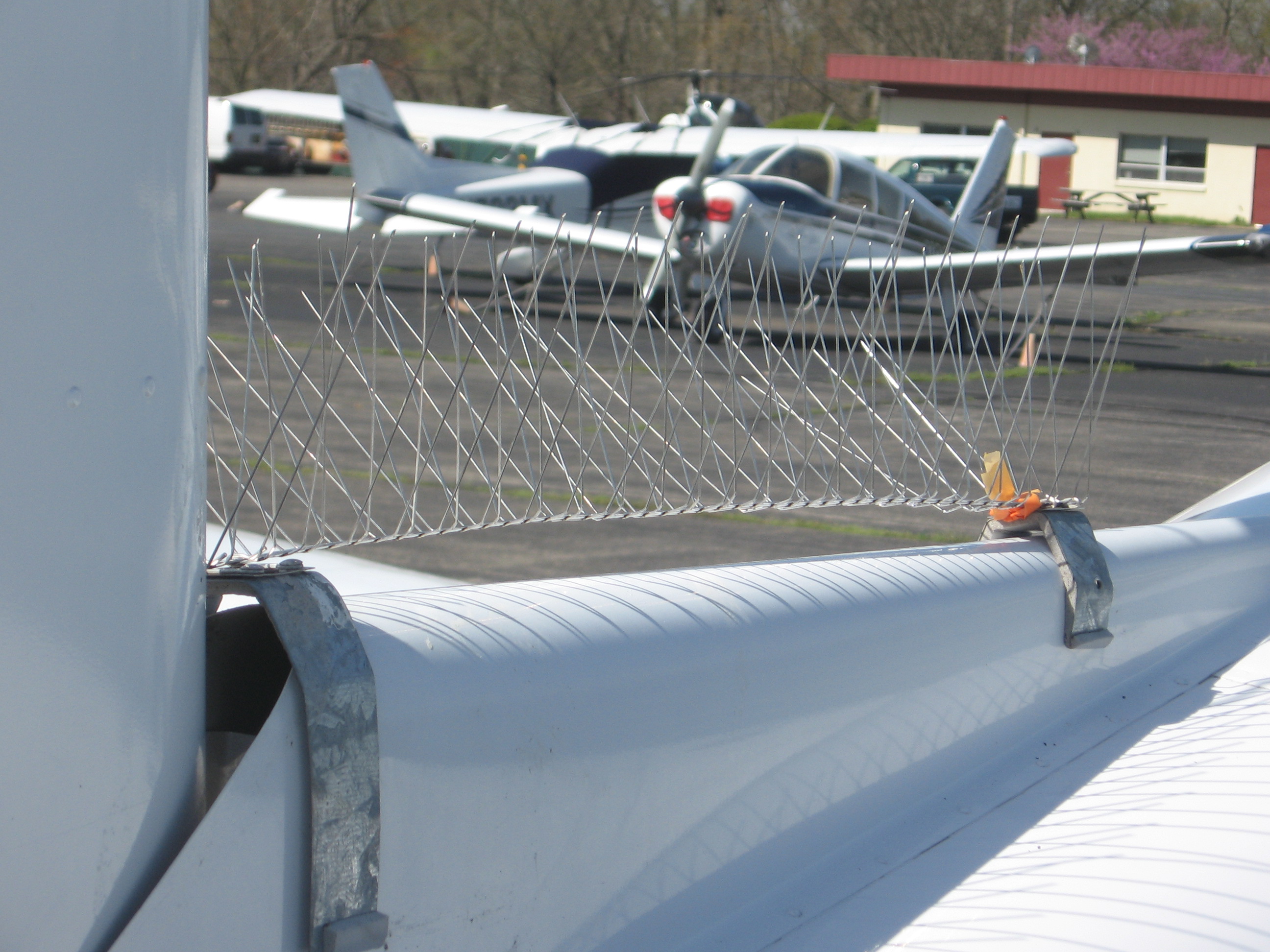

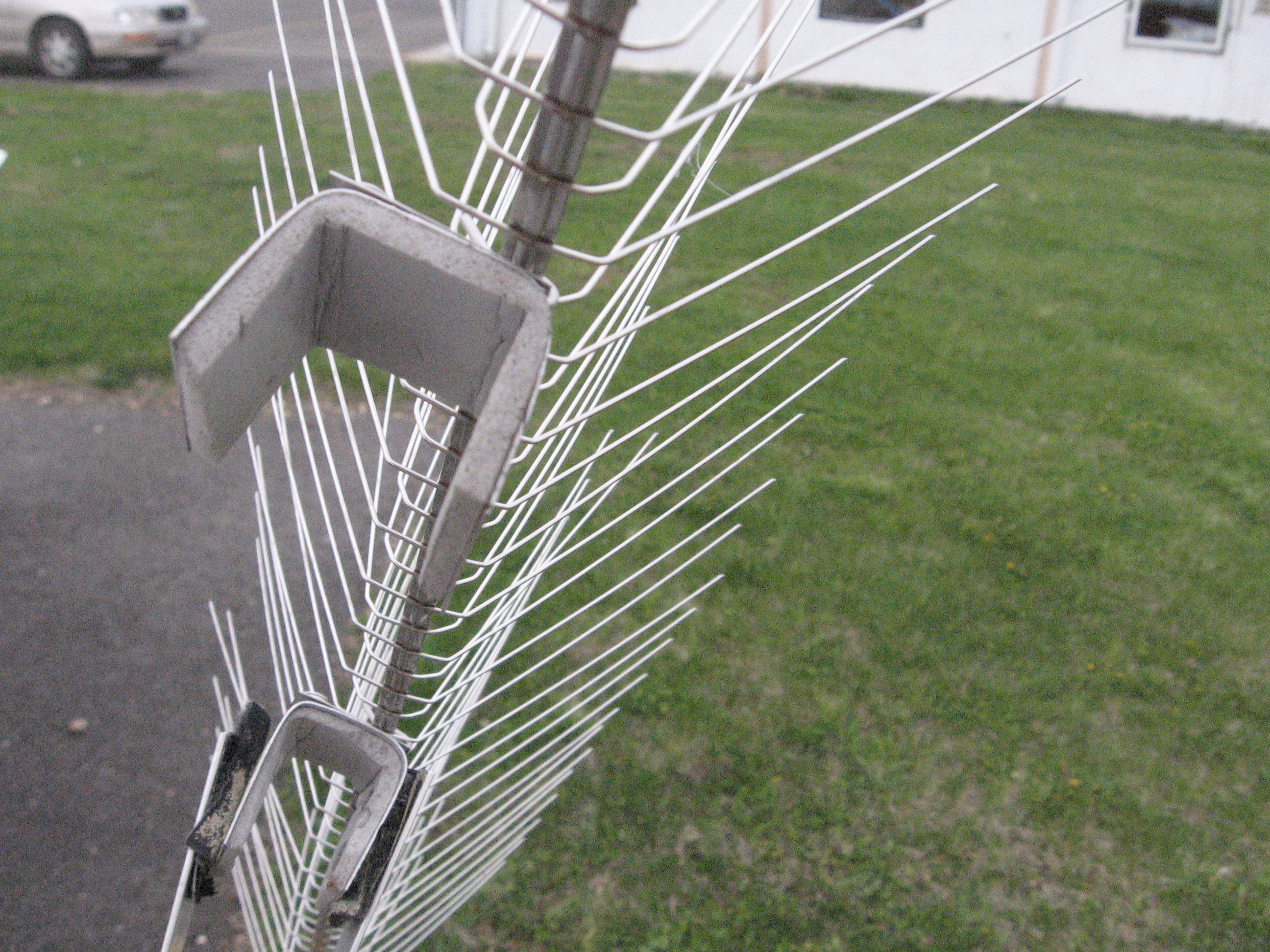

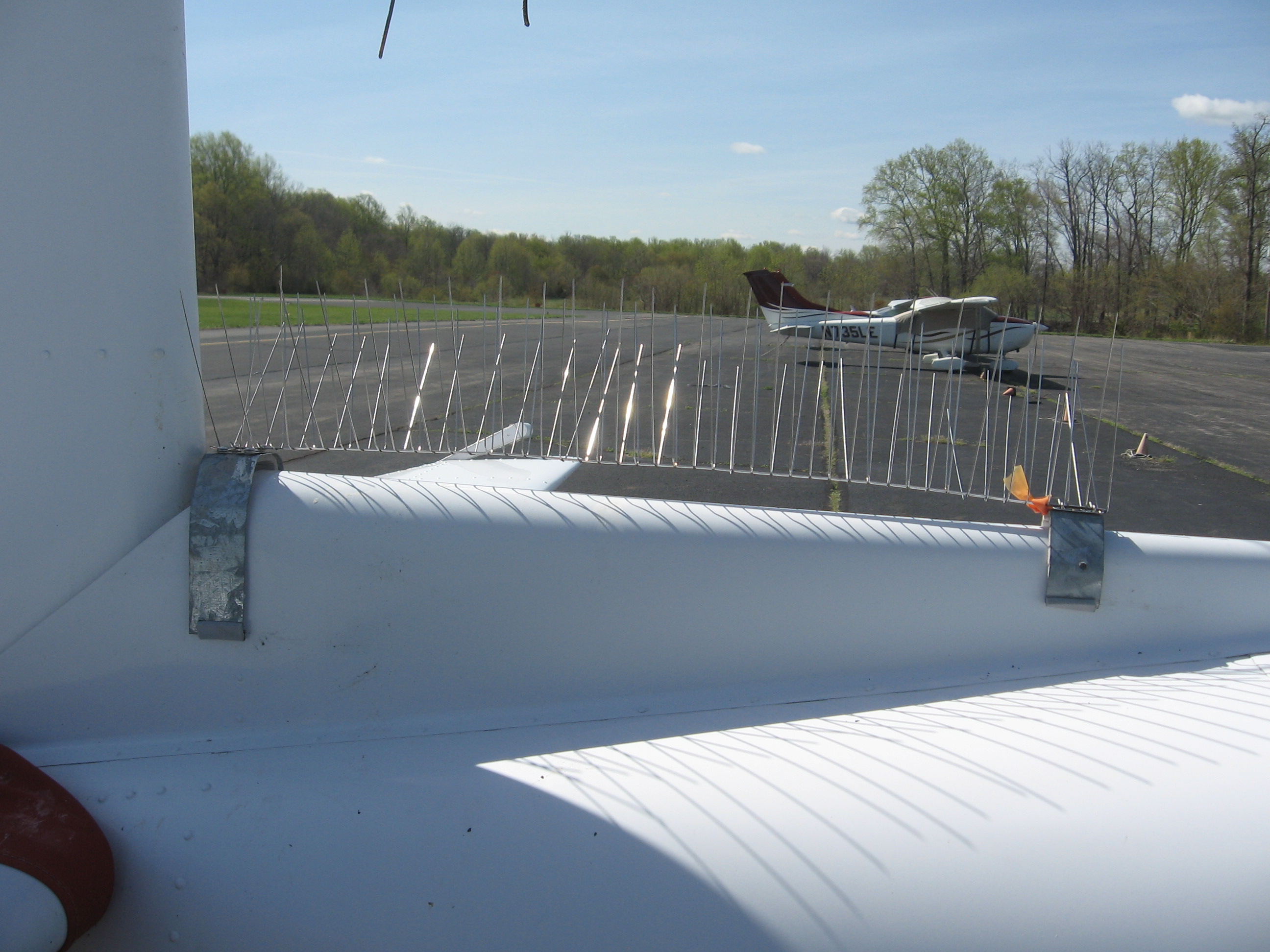

Galvanized Steel or .02-.03 Aluminum for Brackets
Velcro... Use Eyelets to attach...Glue does not work
Dritz 5/32 Brass Eyelets 104-35....Jo Ann Fabrics

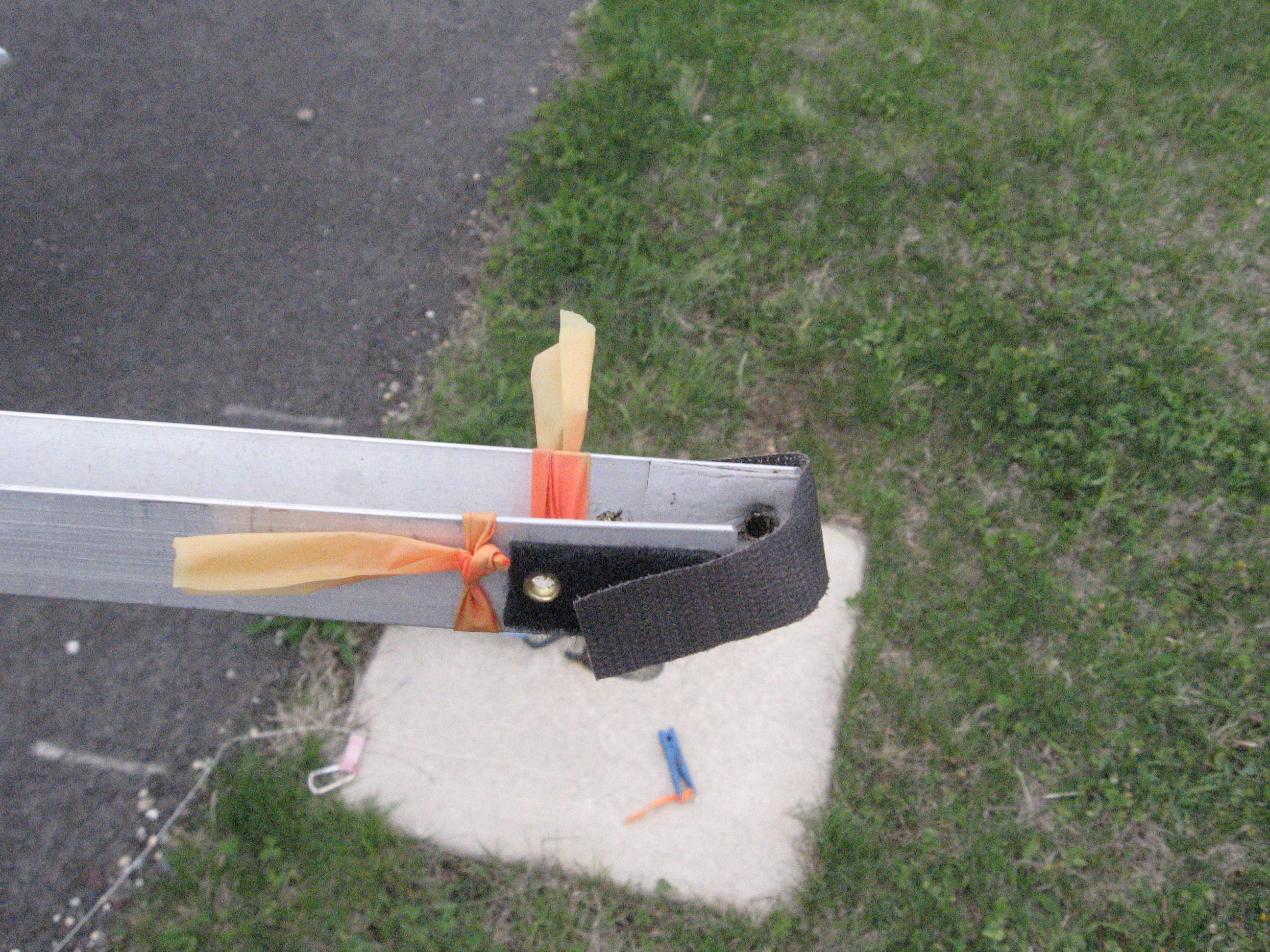

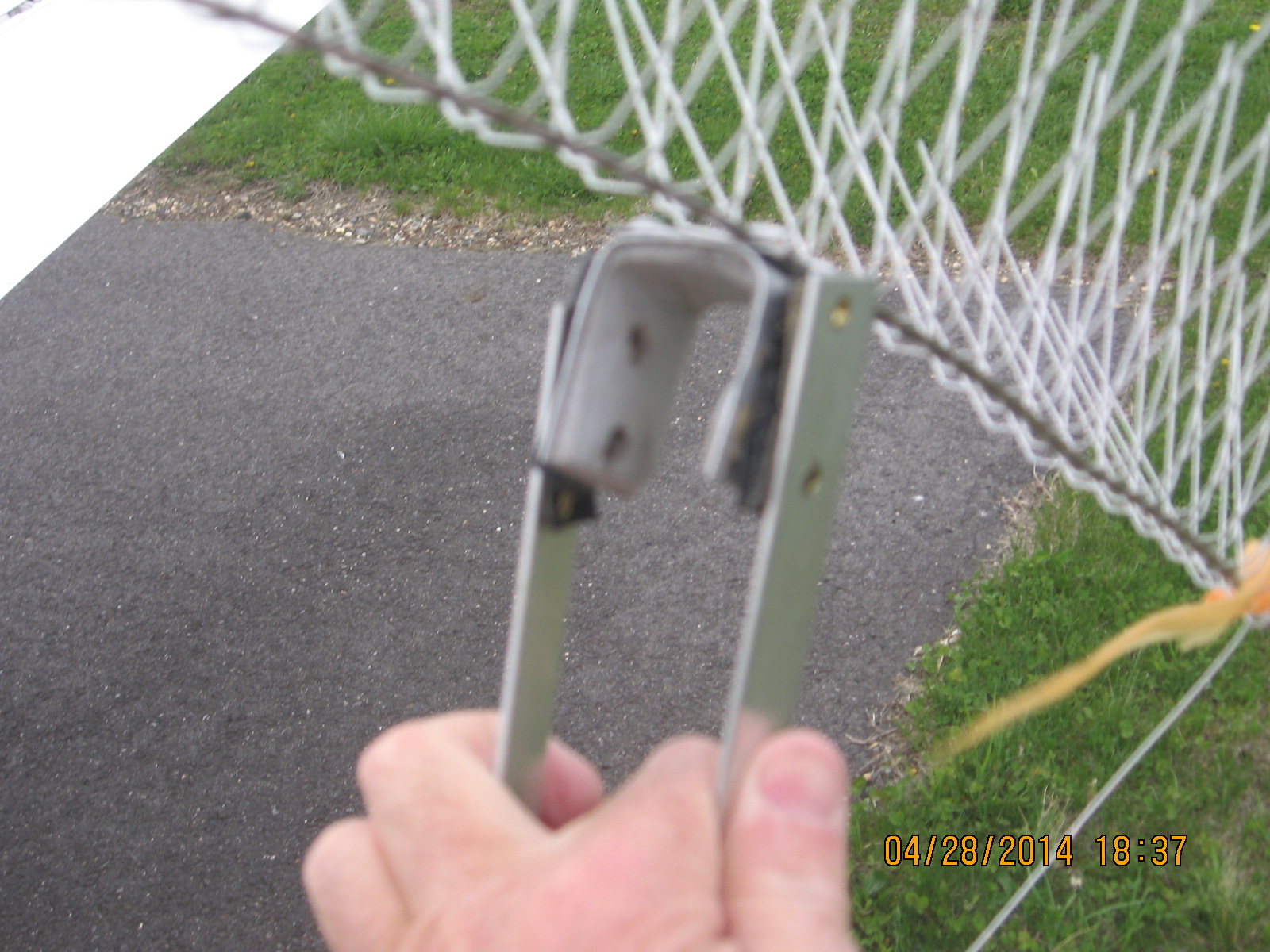

.06 x 3/4 alum bar as required...Ace Hardware, Handles... Velcro to brackets and through hinge opening

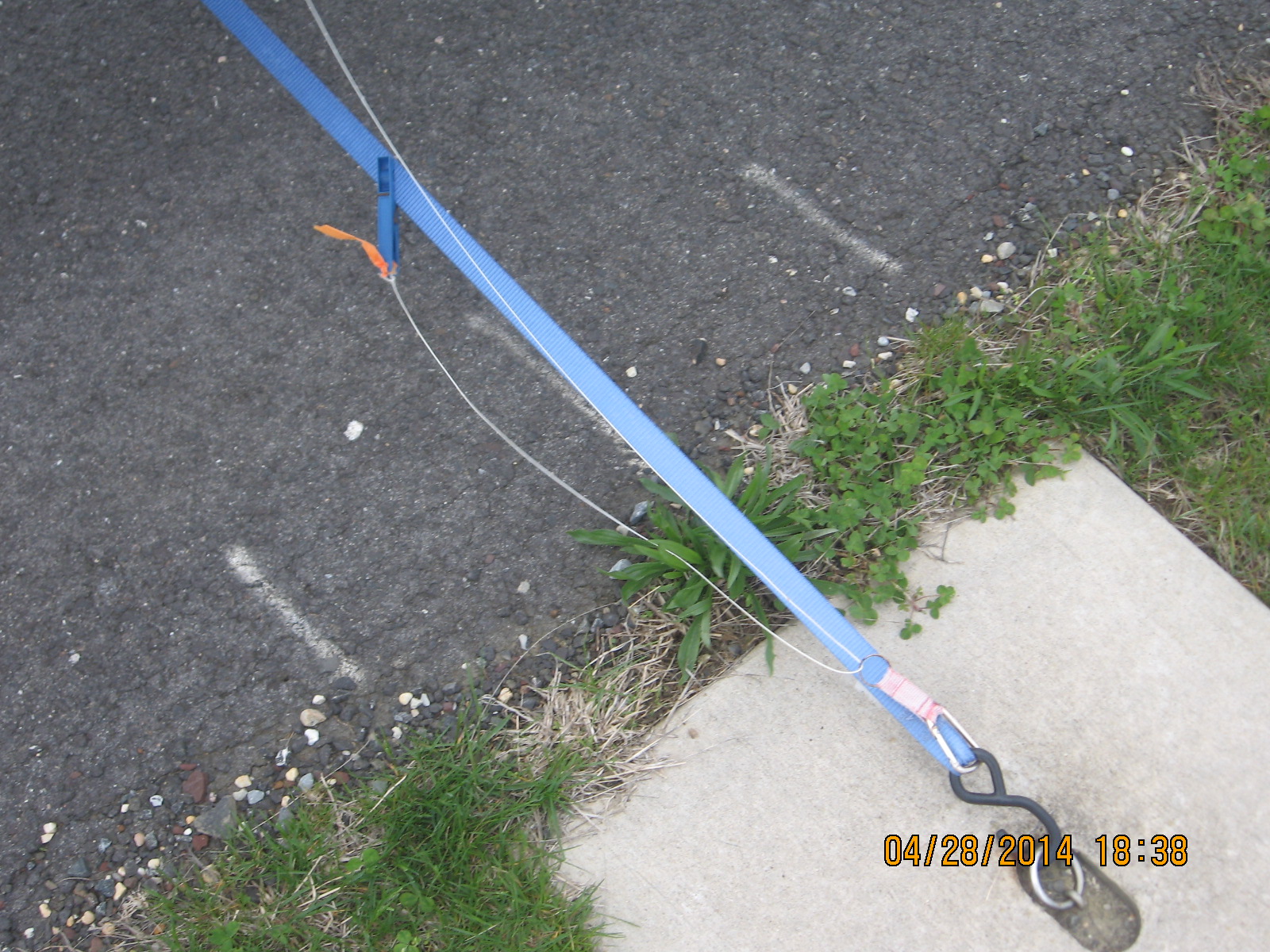

String and Clothespins to tie to the end of tail spike and attach to tie-down
Campermount Closed Cell PVC Tape Ace Hardware #85017

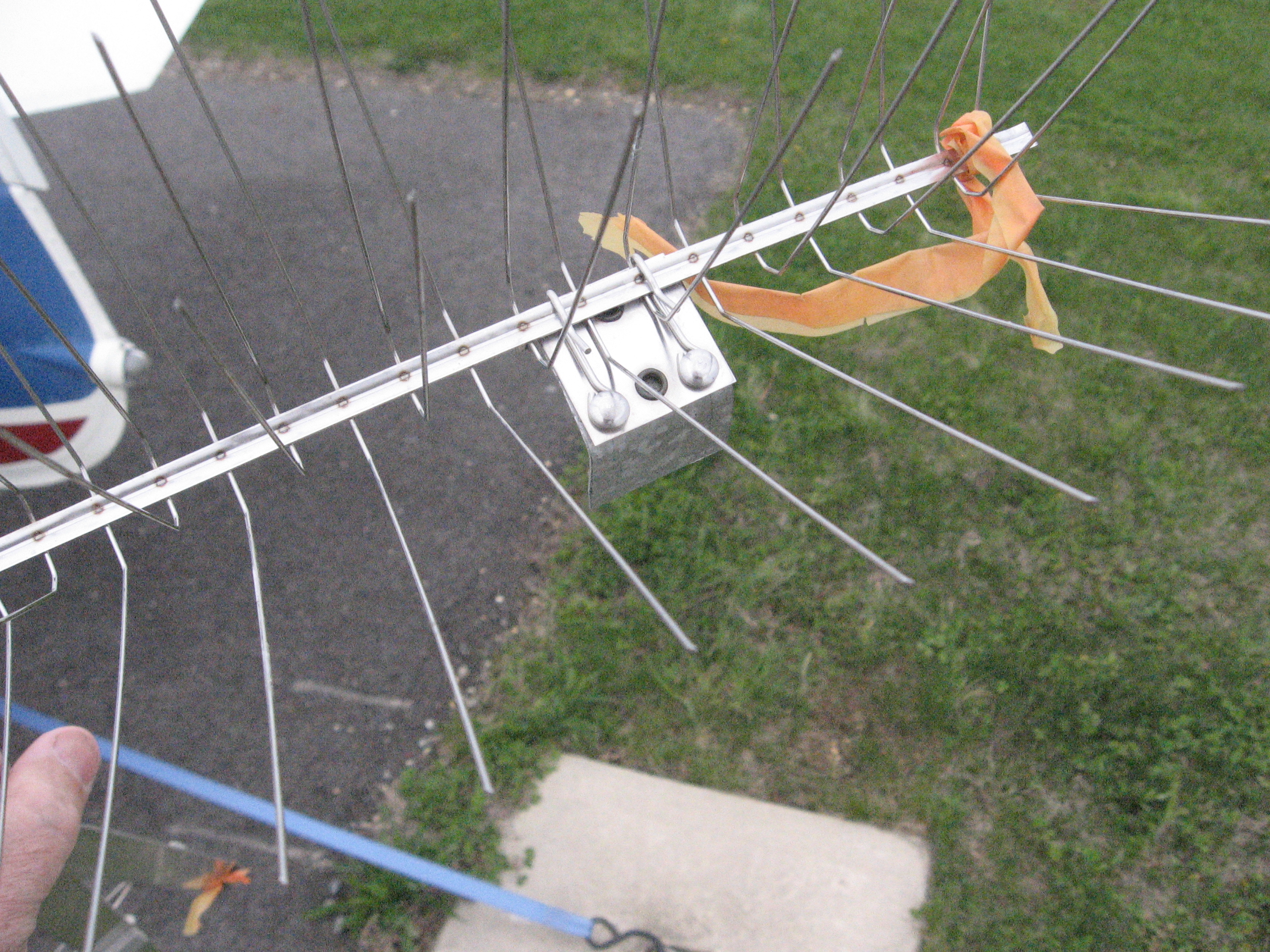

NIXALITE E-SPIKE MODEL 6405
Nixalite MHGC Glue Clips
www.nixalite.com

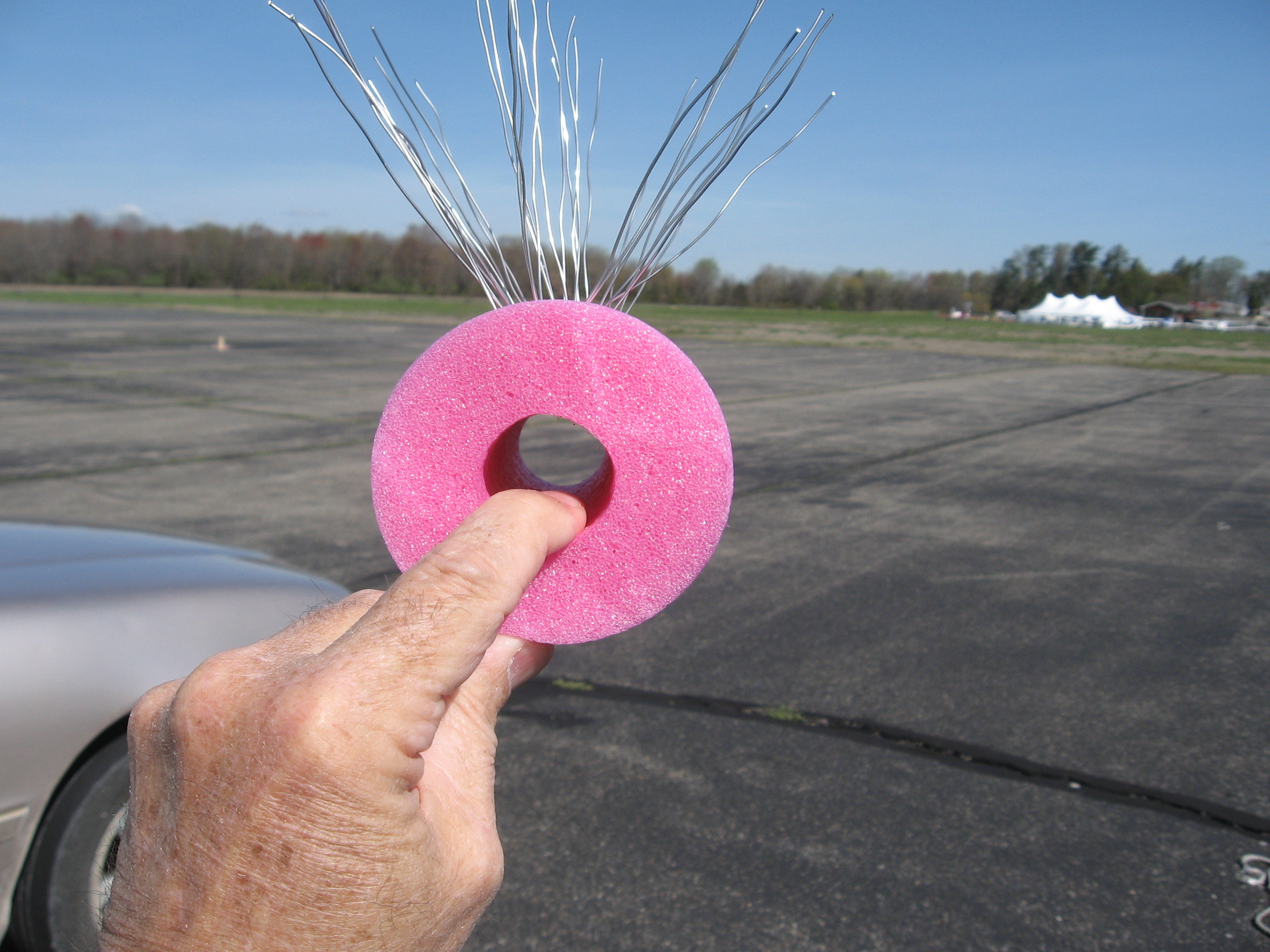

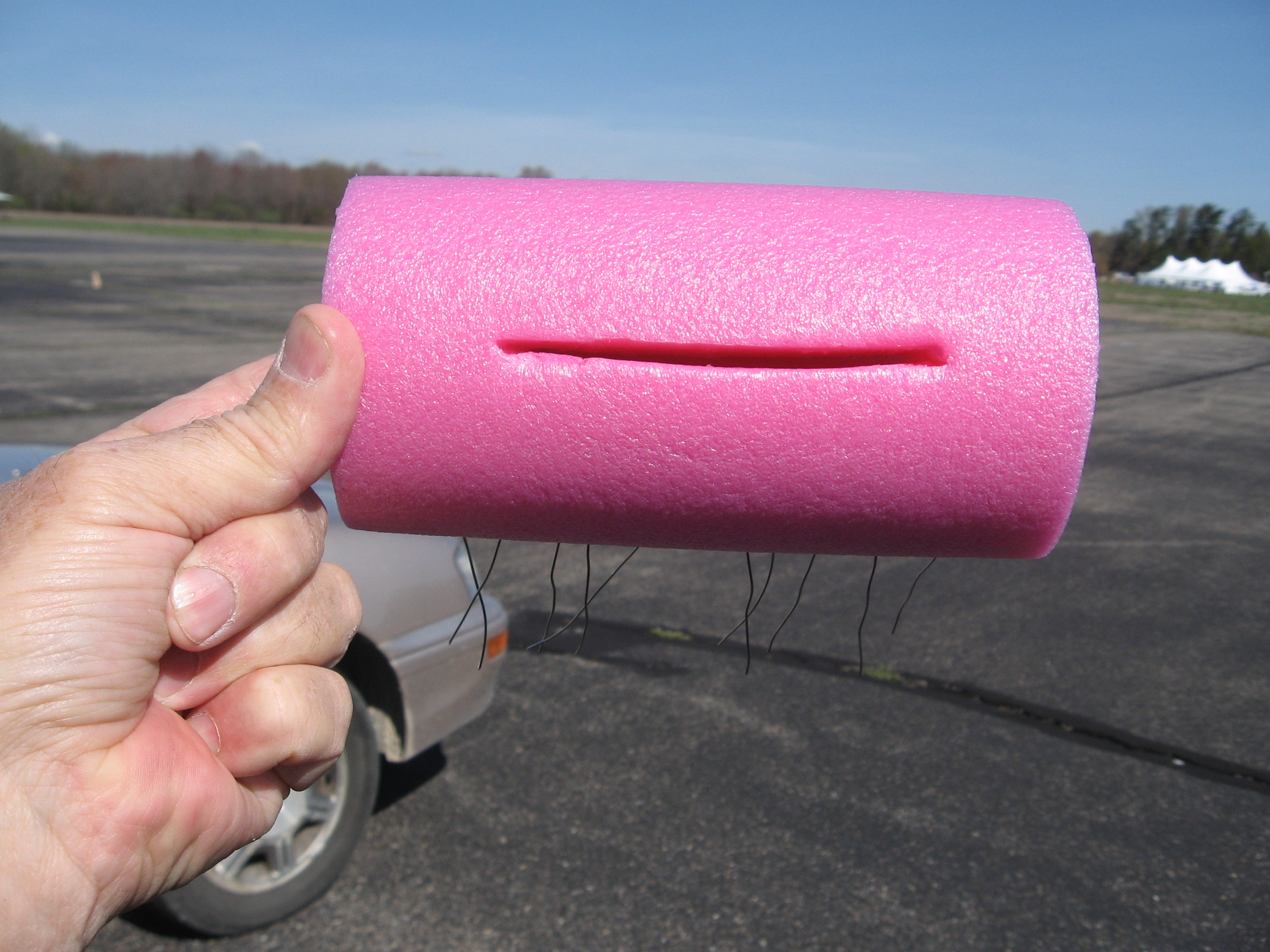

Large Pool Noodle.......WalMart

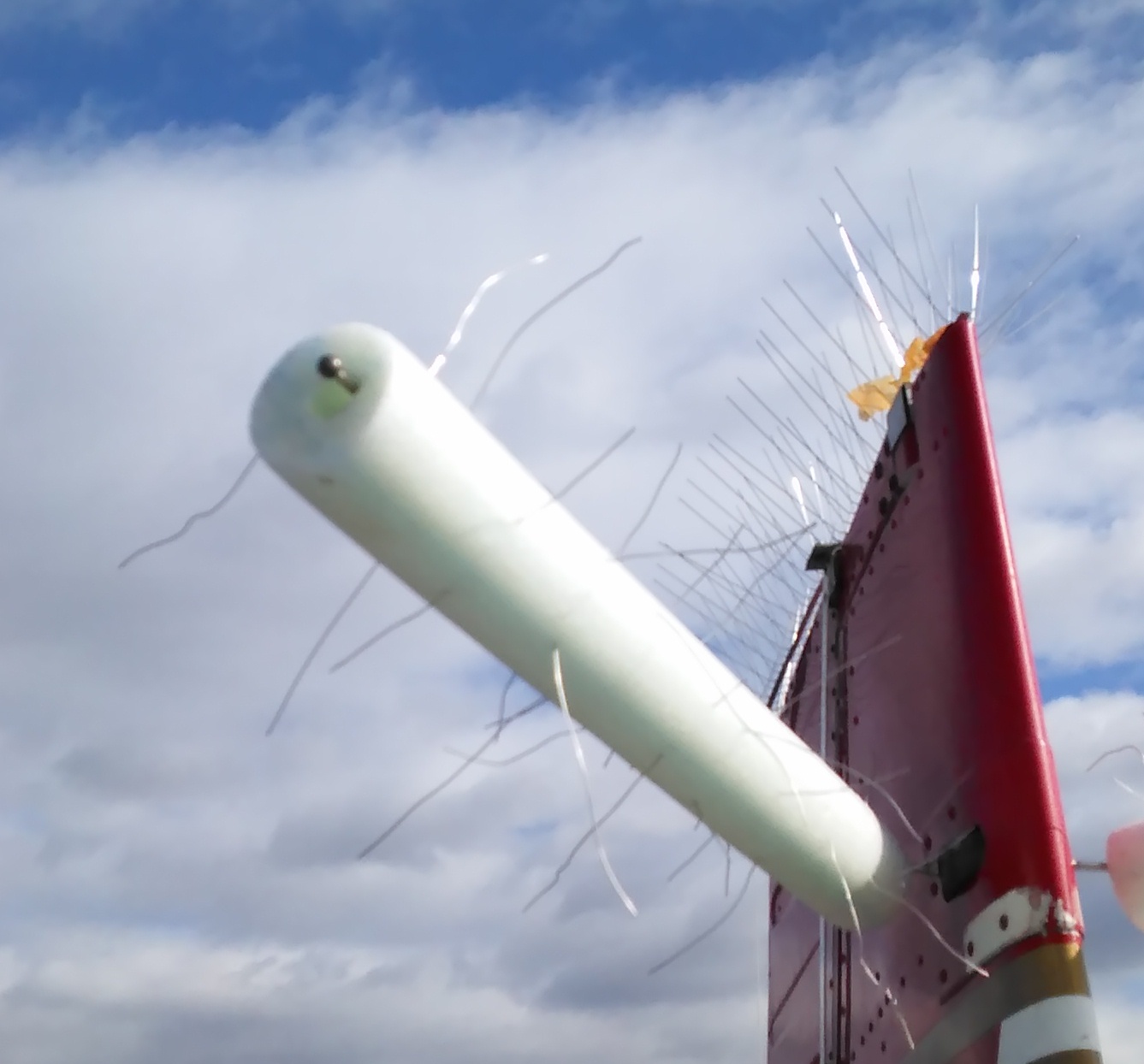

.032 Safety Wire 4" High spikes.
1/8 Steel Rod Counterweight as required 11" is shown,..Bend end and insert in bottom half through hole.
if you use Nixalite you will need 2 counterweights

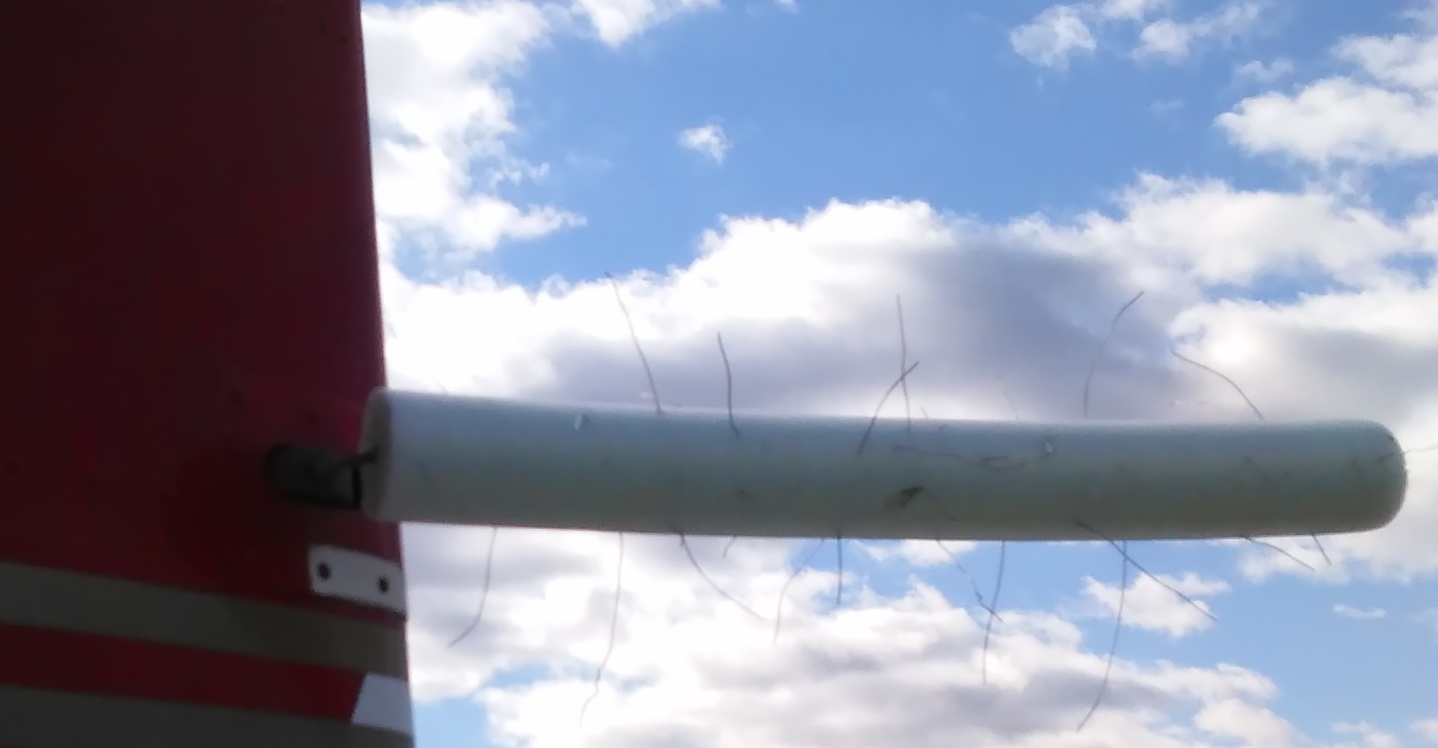

6x6 rag stuffed in the hole at antenna bulb end
to keep antenna spikes from blowing off.

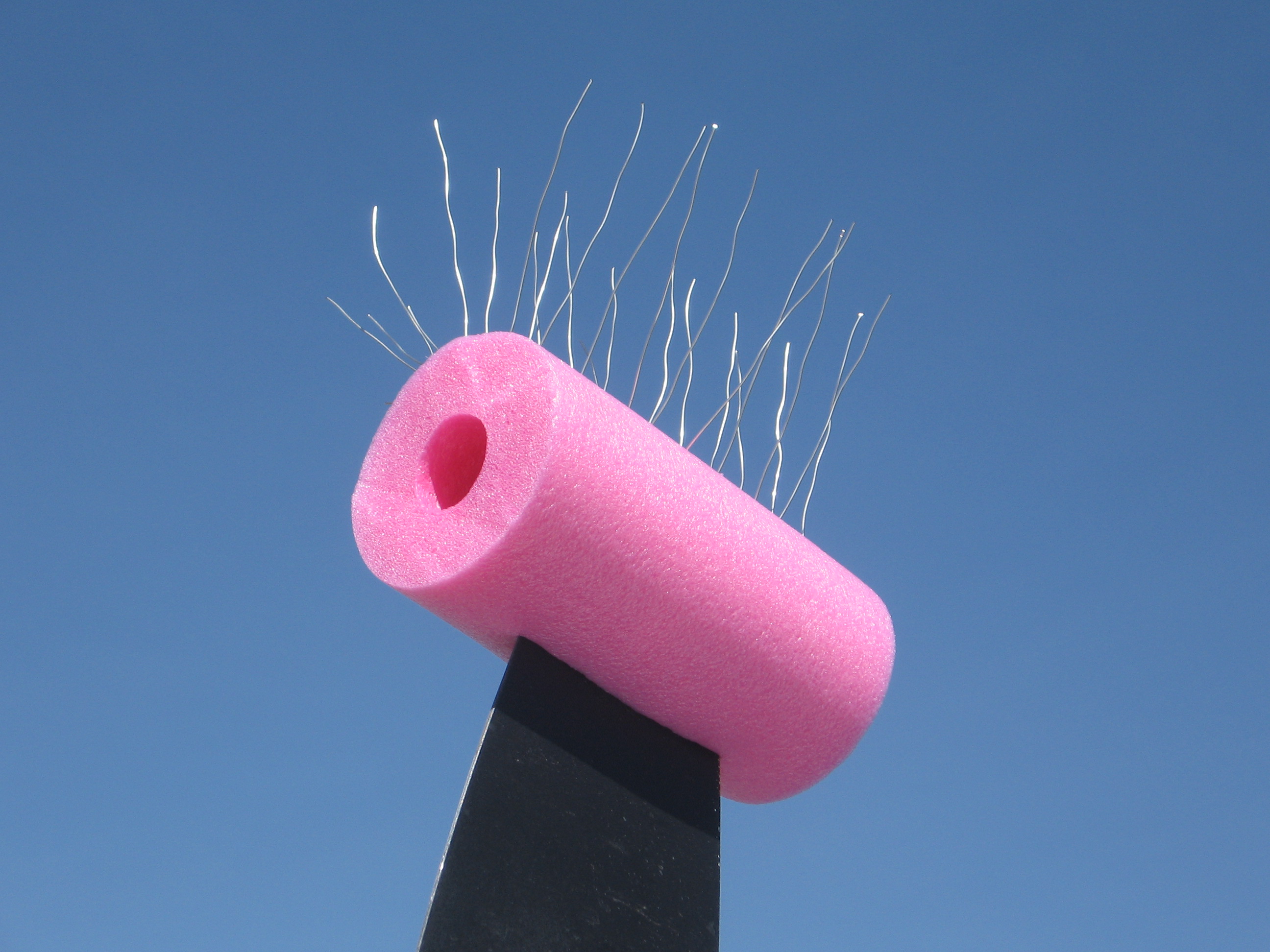

Prop Spikes self explanatory
